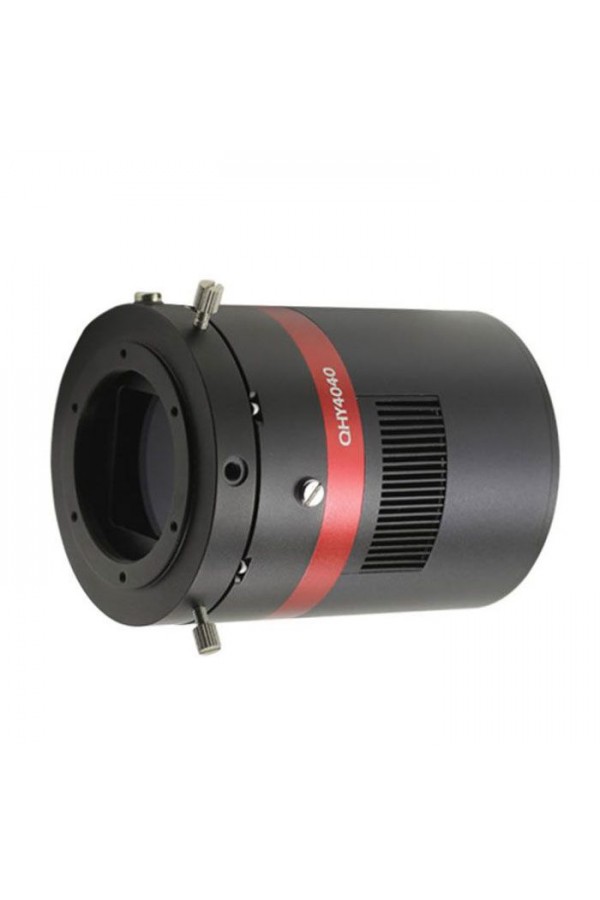

QHYCCD QHY4040 FSI Cooled Monochrome Scientific Camera - Class 2
Ön Sipariş
QHYCCD QHY4040 FSI Cooled Monochrome Scientific Camera - Class 2
759.485,71TL
KDV Hariç: 632.904,76TL
- Stok: Ön Sipariş
- Stok Kodu: QHY4040-FSI-CLASS-2
| Item | QHY4040-FSI-CLASS-2 |
| Product Name | QHYCCD QHY4040 FSI Cooled Monochrome Scientific Camera - Class 2 |
| Imaging Camera Series | QHY 4040 |
| Color or Monochrome Camera | Monochrome |
| Cooled or Uncooled | Cooled |
| Pixel Size in Microns | 9 |
| Pixel Array & Resolution | 4096 x 4096 (16.8 MP) |

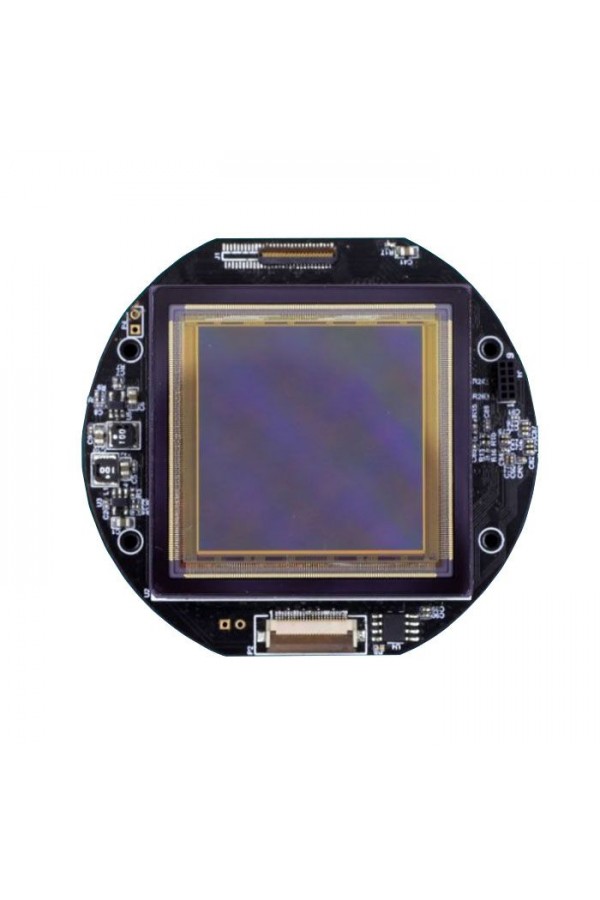

| Sensor Model | Gense4040 FSI - CMT |
| Camera Sensor Manufacturer | Gpixel |
| Sensor Type | CMOS |
| Sensor Dimensions (mm x mm) | 36.86 x 36.86 |
| Sensor Diagonal (mm) | 52,13 |
| Peak Quantum Efficiency (QE) | 74% at 600nm |
| Native Bit Depth | 12 |
| Minimum Exposure | 20us |
| Maximum Exposure | 600sec |

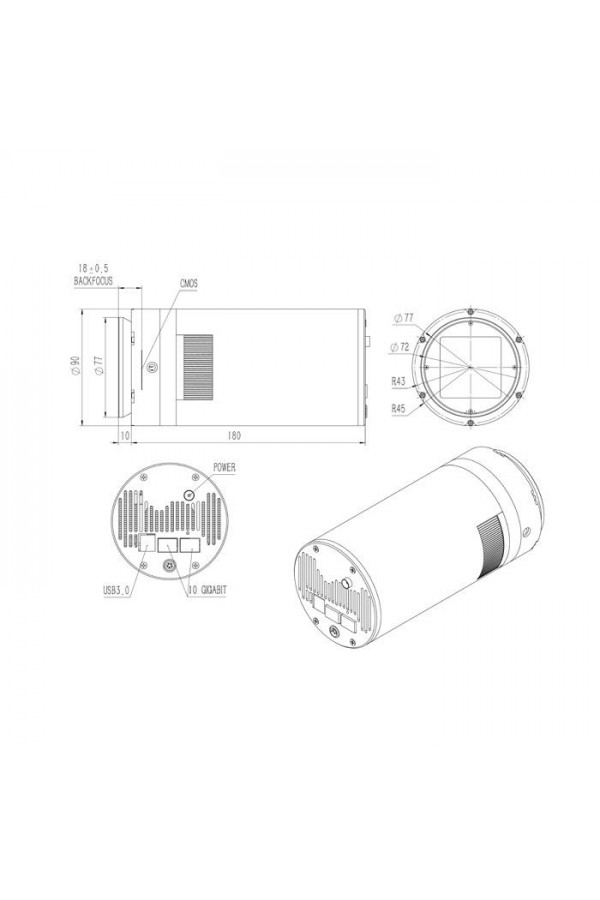

| Native Back Focus (mm) | 17mm（±0.2） |
| Camera Thread Type | M54 Female |
| Camera Window | AR+AR |
| Computer Interface | USB 3.0 |
| Camera Weight (lb.) | 1.73063 lb. |
| Warranty | QHY 2 Years (1-2 Years on Sensors) |
| Item | QHY4040-FSI-CLASS-2 |
| Product Name | QHYCCD QHY4040 FSI Cooled Monochrome Scientific Camera - Class 2 |
| Imaging Camera Series | QHY 4040 |
| Color or Monochrome Camera | Monochrome |
| Cooled or Uncooled | Cooled |
| Pixel Size in Microns | 9 |
| Pixel Array & Resolution | 4096 x 4096 (16.8 MP) |
| Sensor Model | Gense4040 FSI - CMT |
| Camera Sensor Manufacturer | Gpixel |
| Sensor Type | CMOS |
| Sensor Dimensions (mm x mm) | 36.86 x 36.86 |
| Sensor Diagonal (mm) | 52,13 |
| Peak Quantum Efficiency (QE) | 74% at 600nm |
| Native Bit Depth | 12 |
| Minimum Exposure | 20us |
| Maximum Exposure | 600sec |
| Native Back Focus (mm) | 17mm（±0.2） |
| Camera Thread Type | M54 Female |
| Camera Window | AR+AR |
| Computer Interface | USB 3.0 |
| Camera Weight (lb.) | 1.73063 lb. |
| Warranty | QHY 2 Years (1-2 Years on Sensors) |
