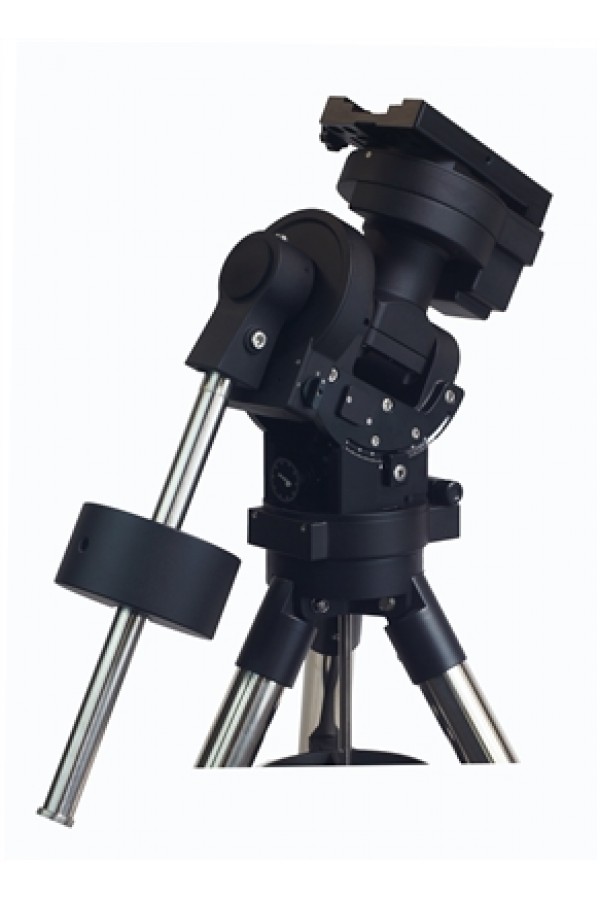

iOptron CEM70 USB3.0 Wi-Fi

Name: iOptron CEM70 USB3.0 Wi-Fi
Brand: iOptron
Price: 249410.53 TRY

Yeni Ön Sipariş

249.410,53TL

KDV Hariç: 207.842,11TL

Adet

Features

A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
Ideal for both visual observation and astrophotography
Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
Easy to use and reliable gear clutches
Precision altitude and azimuth adjustment.
Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
iPolar^TM electronic polar scope
Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
High precision tracking with low periodic error (PE)<±5 arcsec
Permanent periodic error correction (PPEC)
32-channel Global Positioning System (GPS)
Built-in WiFi for remote operation
USB3.0 connection
Integrated ST-4 autoguiding port
Advanced cable management system with more choices
Spring loaded 8" Vixen/Losmandy dual saddle
NEW iOptron subsidized TheSky Imaging Edition

PACKAGE CONTENTS

Mount	Center-balanced Equatorial Mount (CEM)
Payload*	31.8kg (70 lbs), exclude counterweight
Mount weight	13.6kg (30 lbs)
Payload/Mount weight ratio	2.33
Material	All metal
Latitude adjustment range	0°~ 65°
Azimuth adjustment range	± 4°
PE (by encoder)**	< ±5 arcsec
Worm period	348 sec
PEC	PPEC
Right Ascension worm wheel	Φ151mm, 248 teeth
Declination worm wheel	Φ151mm, 248 teeth
Worm	Φ21.2mm
Right Ascension axle	Φ55mm, steel
Declination axle	Φ55mm, steel
Right Ascension bearings	Φ80mm
Declination bearings	Φ80mm
Counterweight shaft	Φ28x 415 mm (SS, 1.9kg)
Counterweight	9.5 kg (20 lbs) x1
Mount base size	Φ152mm
Motor drive	Precision stepper motor w/128 micro-step
Resolution	0.07 arc seconds
Slew speed	3.75°/sec (900x) max.
Hand Controller	Go2Nova® 8410, 8 line 21 character LCD
Power requirement***	DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption	0.6A(Tracking),0.8A(GOTO)
Polar Scope	Internal electronic polar scope, iPolar
Meridian treatment	Stop (0-10° pass), auto flip
Zero position	Automatic zero search
Park position	Horizontal, vertical, current, alt/azi input
Level indicator	YES
Dovetail saddle	8" Losmandy D & Vixen
GPS	YES
Guiding port	ST-4
Communication port	USB3.0, Wifi
Cable management	1xDC12V (3A), 3xUSB3.0, 1xDC in/2xDC out, iPort. 1X USB input for mount, iGuider, iPolar and more
Operation temperature range	-10°C ~ +40°C
Hard case	YES
Pier/Tripod	Optional LiteRoc tripod (8023ACC) or pier
Mount gross wt and dim	51 lbs, 21 x 18 x 10 in
Counterweight gross wt and dim	22 lbs, 9 x 9 x 5 in
Warranty	Two year limited

Features

A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
Ideal for both visual observation and astrophotography
Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
Easy to use and reliable gear clutches
Precision altitude and azimuth adjustment.
Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
iPolar^TM electronic polar scope
Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
High precision tracking with low periodic error (PE)<±5 arcsec
Permanent periodic error correction (PPEC)
32-channel Global Positioning System (GPS)
Built-in WiFi for remote operation
USB3.0 connection
Integrated ST-4 autoguiding port
Advanced cable management system with more choices
Spring loaded 8" Vixen/Losmandy dual saddle
NEW iOptron subsidized TheSky Imaging Edition

PACKAGE CONTENTS

Mount	Center-balanced Equatorial Mount (CEM)
Payload*	31.8kg (70 lbs), exclude counterweight
Mount weight	13.6kg (30 lbs)
Payload/Mount weight ratio	2.33
Material	All metal
Latitude adjustment range	0°~ 65°
Azimuth adjustment range	± 4°
PE (by encoder)**	< ±5 arcsec
Worm period	348 sec
PEC	PPEC
Right Ascension worm wheel	Φ151mm, 248 teeth
Declination worm wheel	Φ151mm, 248 teeth
Worm	Φ21.2mm
Right Ascension axle	Φ55mm, steel
Declination axle	Φ55mm, steel
Right Ascension bearings	Φ80mm
Declination bearings	Φ80mm
Counterweight shaft	Φ28x 415 mm (SS, 1.9kg)
Counterweight	9.5 kg (20 lbs) x1
Mount base size	Φ152mm
Motor drive	Precision stepper motor w/128 micro-step
Resolution	0.07 arc seconds
Slew speed	3.75°/sec (900x) max.
Hand Controller	Go2Nova® 8410, 8 line 21 character LCD
Power requirement***	DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption	0.6A(Tracking),0.8A(GOTO)
Polar Scope	Internal electronic polar scope, iPolar
Meridian treatment	Stop (0-10° pass), auto flip
Zero position	Automatic zero search
Park position	Horizontal, vertical, current, alt/azi input
Level indicator	YES
Dovetail saddle	8" Losmandy D & Vixen
GPS	YES
Guiding port	ST-4
Communication port	USB3.0, Wifi
Cable management	1xDC12V (3A), 3xUSB3.0, 1xDC in/2xDC out, iPort. 1X USB input for mount, iGuider, iPolar and more
Operation temperature range	-10°C ~ +40°C
Hard case	YES
Pier/Tripod	Optional LiteRoc tripod (8023ACC) or pier
Mount gross wt and dim	51 lbs, 21 x 18 x 10 in
Counterweight gross wt and dim	22 lbs, 9 x 9 x 5 in
Warranty	Two year limited
