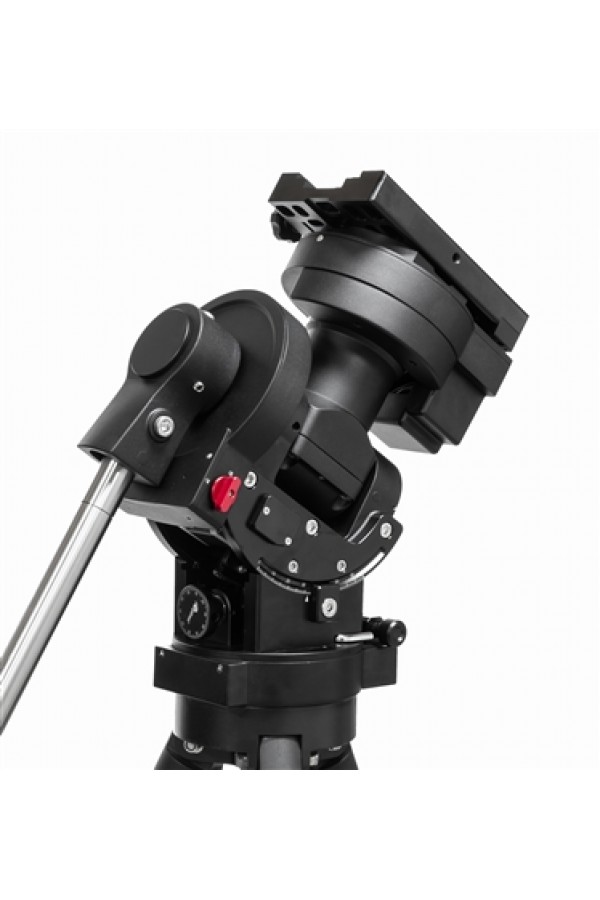

iOptron CEM70EC2W w/iPolar
Yeni
Ön Sipariş
iOptron CEM70EC2W w/iPolar
450.884,21TL
KDV Hariç: 375.736,84TL
- Stok: Ön Sipariş
- Stok Kodu: C706AW0
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload* | 31.8kg (70 lbs), exclude counterweight |
| Mount weight | 13.6kg (30 lbs) |
| Payload/Mount weight ratio | 2.33 |
| Material | All metal |
| Latitude adjustment range | 0°~ 65° |
| Azimuth adjustment range | ± 4° |
| PE (by encoders)** | < 0.3 arcsec rms** |
| Worm period | 348 sec |
| PEC | Real-time PEC(RPEC) |
| Right Ascension worm wheel | Φ151mm, 248 teeth |
| Declination worm wheel | Φ151mm, 248 teeth |
| Worm | Φ21.2mm |
| Right Ascension axle | Φ55mm, steel |
| Declination axle | Φ55mm, steel |
| Right Ascension bearings | Φ80mm |
| Declination bearings | Φ80mm |
| Counterweight shaft | Φ28x 415 mm (SS, 1.9kg) |
| Counterweight | 9.5 kg (20 lbs) x1 |
| Mount base size | Φ152mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 3.75°/sec (900x) max. |
| Hand Controller | Go2Nova® 8410, 8 line 21 character LCD |
| Power requirement*** | DC 12V, 5A (5.5mm/2.5mm plug) |
| Power consumption | 0.6A(Tracking),0.8A(GOTO) |
| Polar Scope | Internal electronic polar scope, iPolar |
| Meridian treatment | Stop (0-10° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | 8" Losmandy D & Vixen |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | USB3.0, WiFi |
| Cable management | 1xDC12V (3A), 3xUSB3.0, 1xDC in/2xDC out, iPort. 1X USB input for mount, Guider, iPolar and more |
| Operation temperature range | -10°C ~ +40°C |
| Hard case | Yes |
| Pier/Tripod | Optional LiteRoc tripod (8023ACC) or pier |
| Mount gross wt and dim | 51 lbs, 21 x 18 x 10 in |
| Counterweight gross wt and dim | 22 lbs, 9 x 9 x 5 in |
| Warranty | Two year limited |
