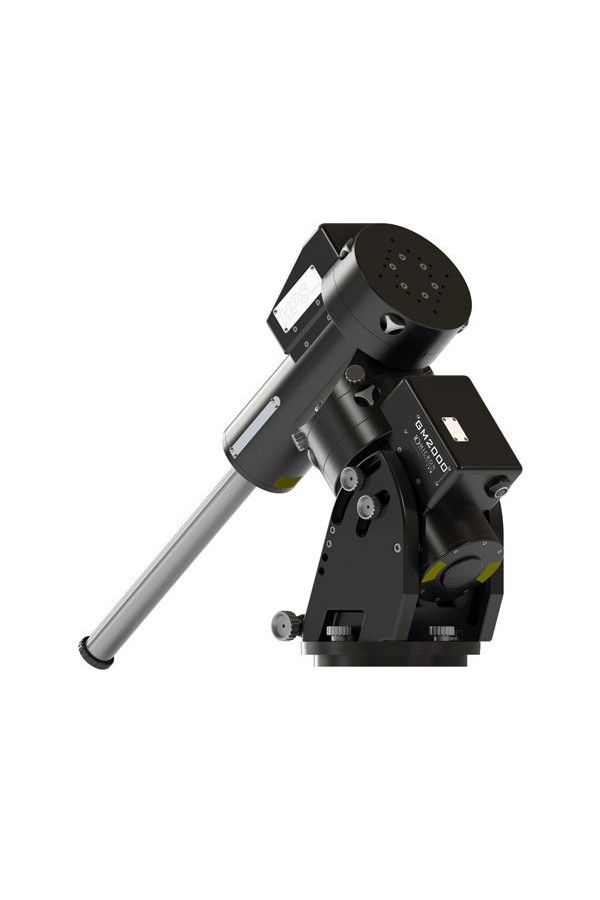

GM 2000 HPS II COMBI GoTo-Mount
- Stok: Ön Sipariş
- Stok Kodu: 10M2030
Mount Type-German Equatorial Mount
Weight (mount w/o acc.)-~ 18,5 kg – 40 lbs + ~15 kg – 33 lbs (without accessories) Total = ~ 33,5 kg – 73 lbs
Instrument Payload Capacity (kg)-50 kg – 110 lbs
Latitude Range-20° – 70°
Azimuth fine adjustment range-+/− 10°
Counterweight shaft-40 mm diameter, stainless steel, weight 4 kg (3.7 lbs)
Axes-50 mm diameter, alloy steel
Bearings-Pre-loaded tapered roller bearings
Worm wheels-215 teeth, 172 mm diameter, B14 bronze
Worms-24mm diameter, tempered alloy steel, grinded and lapped
Motors-2 axes AC servo brushless
Power supply-24 V DC
Power consumption-~ 0,7 A while tracking ~ 3 A at maximum speed ~ 5 A peak
Go-to speed-Adjustable from 2°/s to 20°/s
Mount Type-German Equatorial Mount
Weight (mount w/o acc.)-~ 18,5 kg – 40 lbs + ~15 kg – 33 lbs (without accessories) Total = ~ 33,5 kg – 73 lbs
Instrument Payload Capacity (kg)-50 kg – 110 lbs
Latitude Range-20° – 70°
Azimuth fine adjustment range-+/− 10°
Counterweight shaft-40 mm diameter, stainless steel, weight 4 kg (3.7 lbs)
Axes-50 mm diameter, alloy steel
Bearings-Pre-loaded tapered roller bearings
Worm wheels-215 teeth, 172 mm diameter, B14 bronze
Worms-24mm diameter, tempered alloy steel, grinded and lapped
Motors-2 axes AC servo brushless
Power supply-24 V DC
Power consumption-~ 0,7 A while tracking ~ 3 A at maximum speed ~ 5 A peak
Go-to speed-Adjustable from 2°/s to 20°/s
